JPG_DPS/SCHEMA_KOREKCIE_S_LM1036+PREPINAC_VSTUPOV_6.pdf

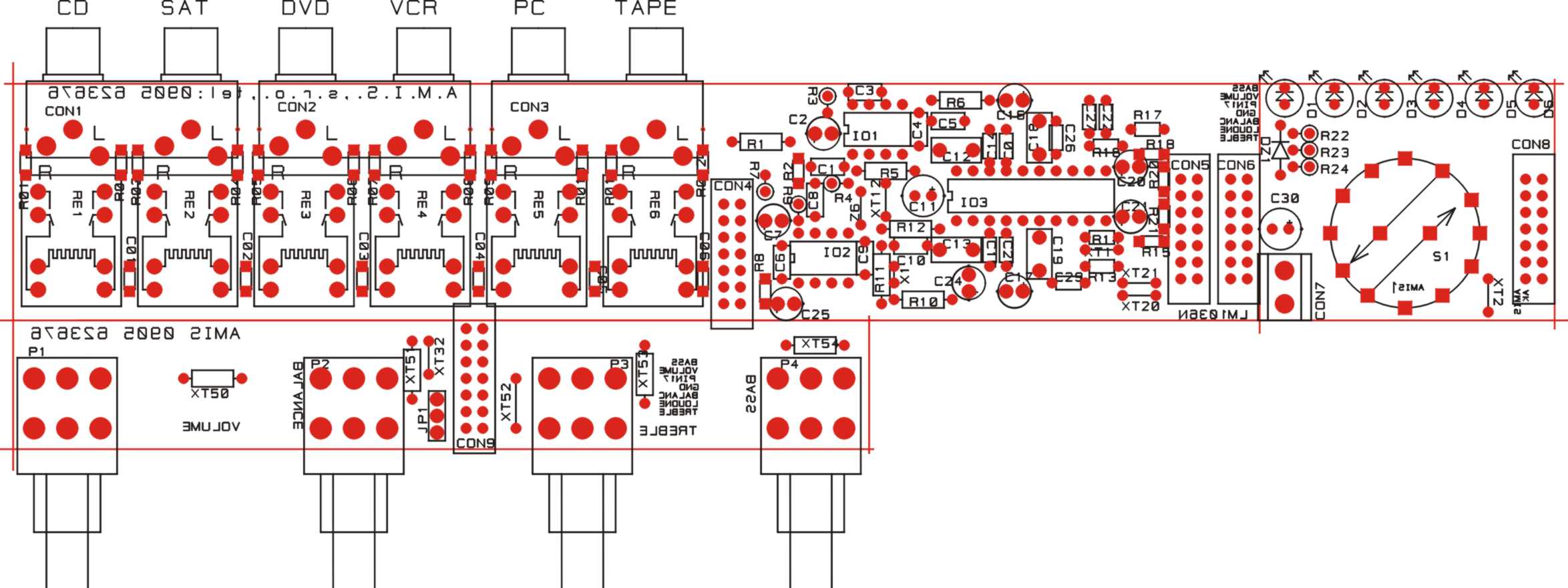

ROZMIESTNENIE NA DPS JPG_DPS/LM1036.jpg

ZOZNAM SÚČIASTOK PRE KOREKČNÝ ZOSILŇOVAČ S LM1036 N

LM1036 Revised: Wednesday, March 22, 2006
001 Revision:

Bill Of Materials March 22,2006 14:36:49 Page1

Quantity Reference Part
______________________________________________

5 CON4,CON5,CON6,CON8,CON9 PFL14
1 CON7 RIA02
12 CON1/1,CON1/2,CON1/3, CINCH4
CON1/4,CON2/1,CON2/2,
CON2/3,CON2/4,CON3/1,
CON3/2,CON3/3,CON3/4
3 C14,C15,C0 10N/F
3 C1,C6,C22 100N/F
6 C01,C02,C03,C04,C05,C06 100N/K
2 C7,C2 2M2/16V
8 C3,C4,C8,C9,C26,C27,C28, 220N/F
C29
2 C10,C5 68P/K
1 C11 47M/16V
2 C12,C13 1M/F
2 C17,C16 10M/16V
2 C19,C18 390N/F
2 C21,C20 4M7/16V
1 C23 470M/16V
2 C25,C24 100M/16V
1 C30 47M/25V
6 D1,D2,D3,D4,D5,D6 LED RED
2 IO2,IO1 NE5534
1 IO3 LM 1036 N NCS
4 P1,P2,P3,P4 47K/M
6 RE1,RE2,RE3,RE4,RE5,RE6 RELE_12V_RED
2 R1,R7 1K
2 R8,R2 56K
2 R3,R9 10K
2 R10,R4 2K7
2 R11,R5 5K6
2 R6,R12 8K2
4 R13,R14,R16,R17 47K
2 R18,R15 10R SMD
1 R19 68R
2 R21,R20 33K SMD
1 R22 1K2
2 R23,R24 150R
6 S1/1,S1/2,S1/3,S1/4,S1/5, PREPINAC 2X6
S1/6
